Operation Blackout 2025

Scenario

Byte Doctor suspected process injection activity on a Windows endpoint. The objective was to verify the injection technique and identify the exact API sequence used to inject into a legitimate process.

Provided files:

• Ghost-Thread.apmx64 (API Monitor capture)
• inject.exe.i64 (IDA database)
• INSTRUCTIONS.txt

Artifact Selection and Relevance

• inject.exe.i64:
  • Static view of malware logic and function flow.
  • Used to identify TLS callback behavior and injection functions before runtime validation.
• Ghost-Thread.apmx64:
  • Runtime API trace of actual behavior on execution.
  • Used to confirm target process, process handle usage, memory allocation, and thread creation.
• INSTRUCTIONS.txt:
  • Provides analysis workflow and expected tool context (API Monitor, IDA).

Investigation

Step 1: Validate provided evidence set

C:\Users\dfirrocks\Desktop\GhostThread>dir
 Volume in drive C has no label.
 Volume Serial Number is 860A-2B89

 Directory of C:\Users\dfirrocks\Desktop\GhostThread

03/01/2026  10:57 AM    <DIR>          .
03/01/2026  08:59 AM    <DIR>          ..
04/16/2025  11:11 PM         3,566,037 Ghost-Thread.apmx64
04/16/2025  09:59 PM         2,328,822 inject.exe.i64
04/16/2025  11:22 PM               934 INSTRUCTIONS.txt
               3 File(s)      5,895,793 bytes
               2 Dir(s)  38,238,740,480 bytes free

C:\Users\dfirrocks\Desktop\GhostThread>type INSTRUCTIONS.txt
==> Open the 'inject.exe.i64' file using IDA Freeware.

==> Instructions for API Monitor
...

Purpose: verify artifact scope and tool chain before deep analysis.
Logic: baseline triage reduces misalignment between static and dynamic evidence.
What this proves: all required artifacts are present and aligned to the scenario.
Next: identify the injection style from static logic.

Step 2: Identify injection style (TLS callback)

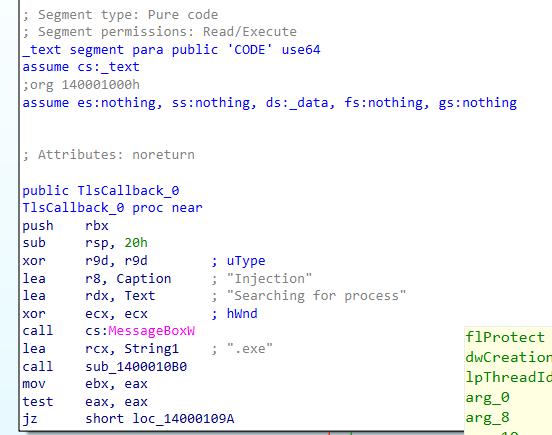

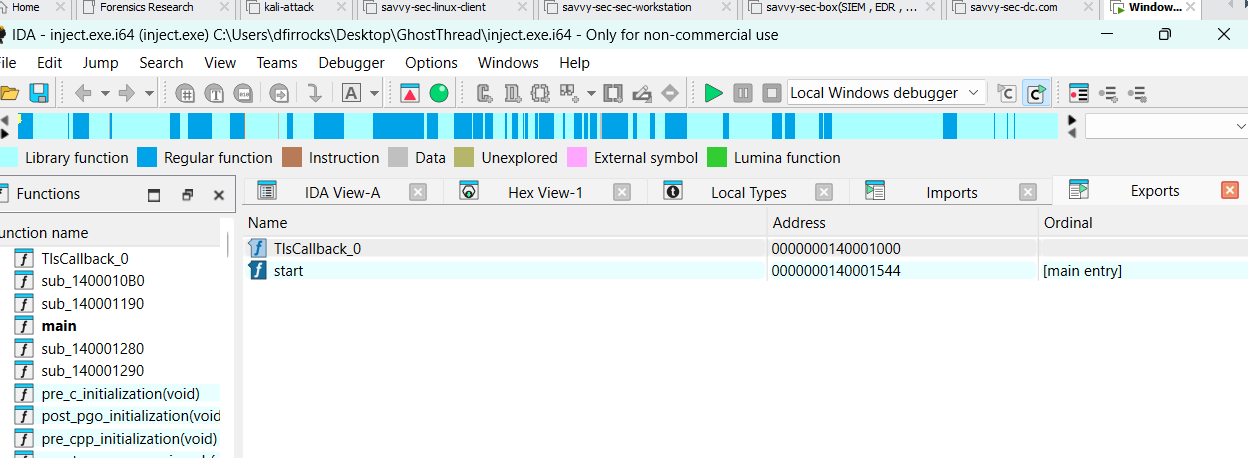

In IDA export/function view, TlsCallback_0 appears before normal entry flow and triggers malicious logic before main().

Purpose: classify the attacker execution method.
Logic: TLS callbacks execute during loader initialization, before normal program entry.
What this proves: injection chain is initiated through a Thread Local Storage (TLS) callback mechanism.
Next: trace how the sample enumerates processes.

Step 3: Confirm process enumeration API

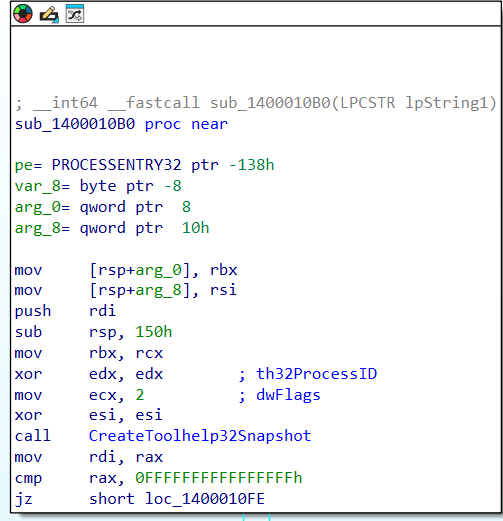

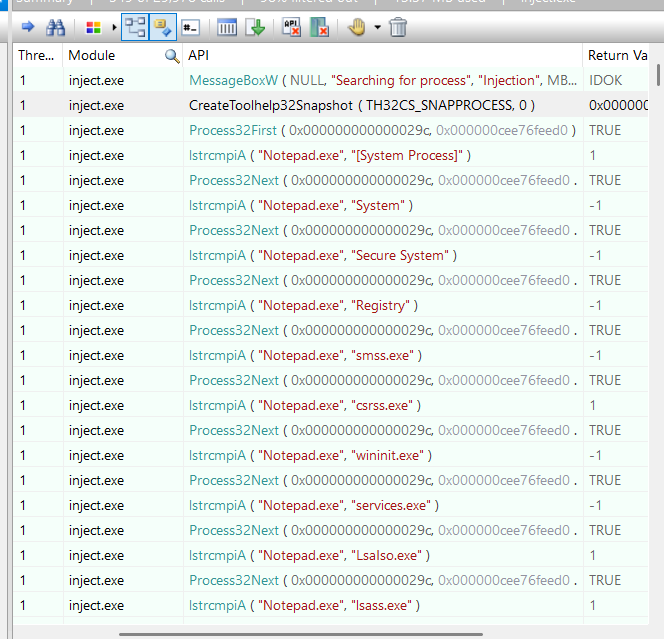

Post-MessageBoxW, execution pivots to an internal function (sub_140001190) that performs process discovery.

The function issues:

• CreateToolhelp32Snapshot(TH32CS_SNAPPROCESS, 0)
• Process32First
• Loop with Process32Next
• Name comparison using lstrcmpA

Purpose: determine how the malware locates an injection target.
Logic: snapshot + iterative process traversal is a standard target-selection pattern.

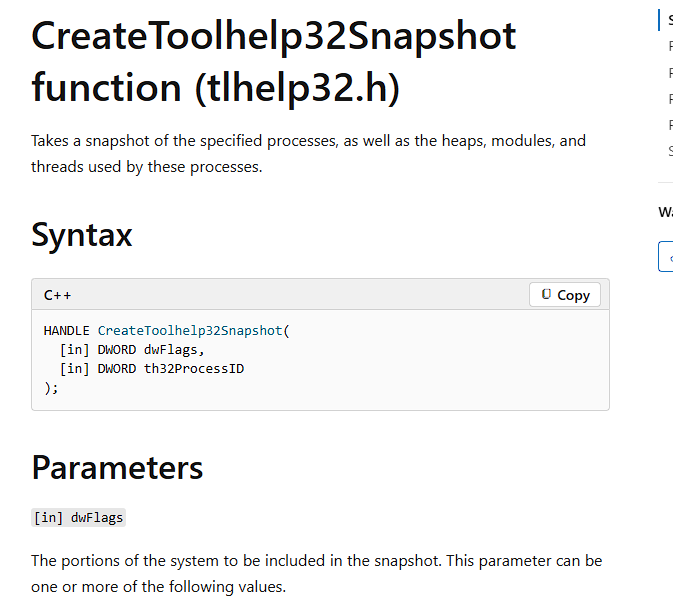

What this proves: API used to list processes is CreateToolhelp32Snapshot.
Next: identify the specific process being hunted.

Step 4: Determine targeted process

Comparison logic loops until process name match; API Monitor/IDA context shows lookup for notepad.exe.

Purpose: identify victim process for remote injection.

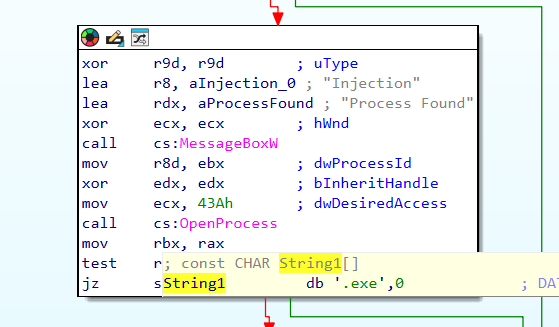

Logic: repeated name comparison followed by OpenProcess indicates explicit target selection.
What this proves: target process is notepad.exe.
Next: capture the concrete PID from runtime telemetry.

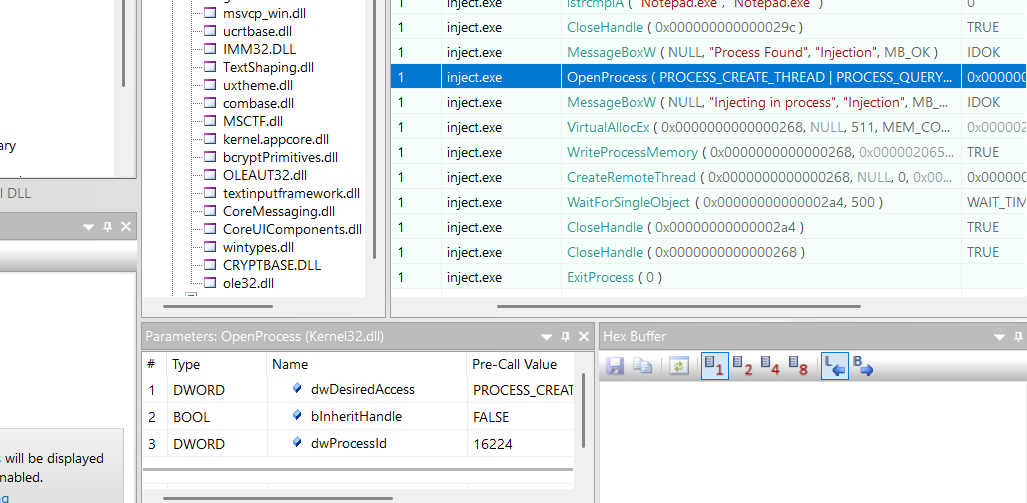

Step 5: Capture target PID from OpenProcess

API trace records the process handle open against the matched process.

Purpose: map logical target to concrete process instance.
Logic: OpenProcess binds the injector to a specific PID.
What this proves: target PID is 16224.
Next: quantify payload allocation size.

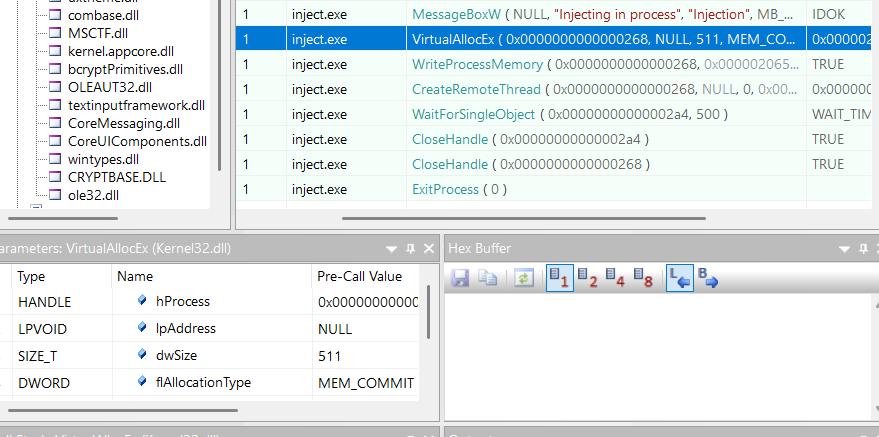

Step 6: Extract shellcode size from allocation call

In the injection function path, memory is allocated in the remote process and the allocation size (nSize) is visible.

Purpose: identify exact payload size used in remote memory stage.
Logic: VirtualAllocEx/allocation parameter reflects intended shellcode length.
What this proves: shellcode size is 511 bytes.
Next: verify execution transfer into remote process.

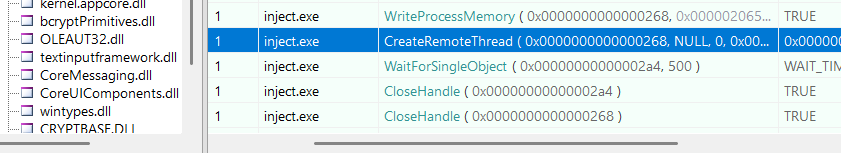

Step 7: Confirm payload execution API

After memory allocation and write stage, execution is triggered in the remote process.

Purpose: validate final execution step of process injection chain.
Logic: remote thread creation is the execution primitive after WriteProcessMemory.
What this proves: injected payload is started via CreateRemoteThread.
Next: verify why sample terminates before normal entry.

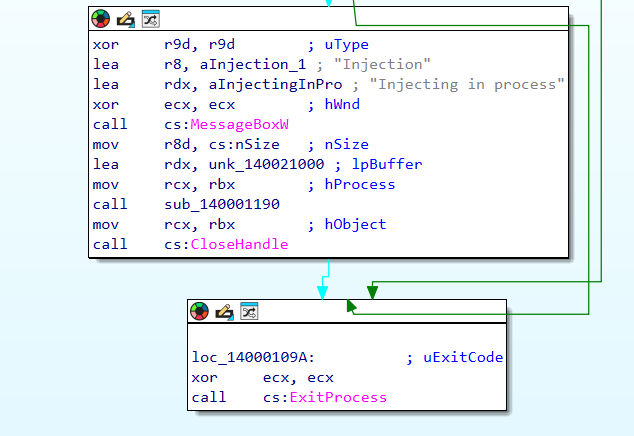

Step 8: Confirm pre-main termination behavior

The trace shows explicit process termination before legitimate program flow.

Purpose: explain control-flow behavior tied to TLS execution.
Logic: TLS callback executes early, then ExitProcess ends binary before normal app logic.
What this proves: API responsible for termination before main() is ExitProcess.

Timeline

• 2025-04-16 Capture artifacts generated (.apmx64, .i64) for analysis set.
• T0 TLS callback executes prior to normal entry point.
• T1 Process enumeration begins with CreateToolhelp32Snapshot + Process32First/Next.
• T2 Target process notepad.exe identified and opened (PID 16224).
• T3 Remote memory allocated (511 bytes), payload written.
• T4 Remote execution triggered with CreateRemoteThread.
• T5 Sample exits via ExitProcess before reaching normal main() flow.

Final Answers (for submission)

1. Thread Local Storage
2. CreateToolhelp32Snapshot
3. notepad.exe
4. 16224
5. 511
6. CreateRemoteThread
7. ExitProcess

Tool Significance

• IDA Free:
  • Static reverse engineering for functions, imports, callback logic, and call graph pivots.
• API Monitor:
  • Dynamic API telemetry to validate execution chain and arguments (enumeration, open process, memory ops, remote thread).
• Why both matter:
  • IDA explains intent and execution flow.
  • API Monitor proves runtime behavior and confirms the answers with observable API calls.
